SS Series Square Carbon Filters

Regular price $79.99 USD $79.99 0% OFF


/
Tax included.   Shipping calculated at checkout.
In stock - Ready to ship
Filtration Stages: 3-Stage Chlorine Reduction

Auto-renews, skip or cancel anytime. View subscription policy

Auto-renews, skip or cancel anytime. View subscription policy

Auto-renews, skip or cancel anytime. View subscription policy

To add to cart, go to the product page and select a purchase option
Spent $100.00 more to get free shipping
Estimated delivery between - .

Ask about SS Series Square Carbon Filters

Product Details
Product Type Core Filter
Filtration Options 3-Stage / 4-Stage / 5-Stage
Compatibility Purewell K Series & SS Series Filter Systems
Package Quantity 1 Box / 2 Filters

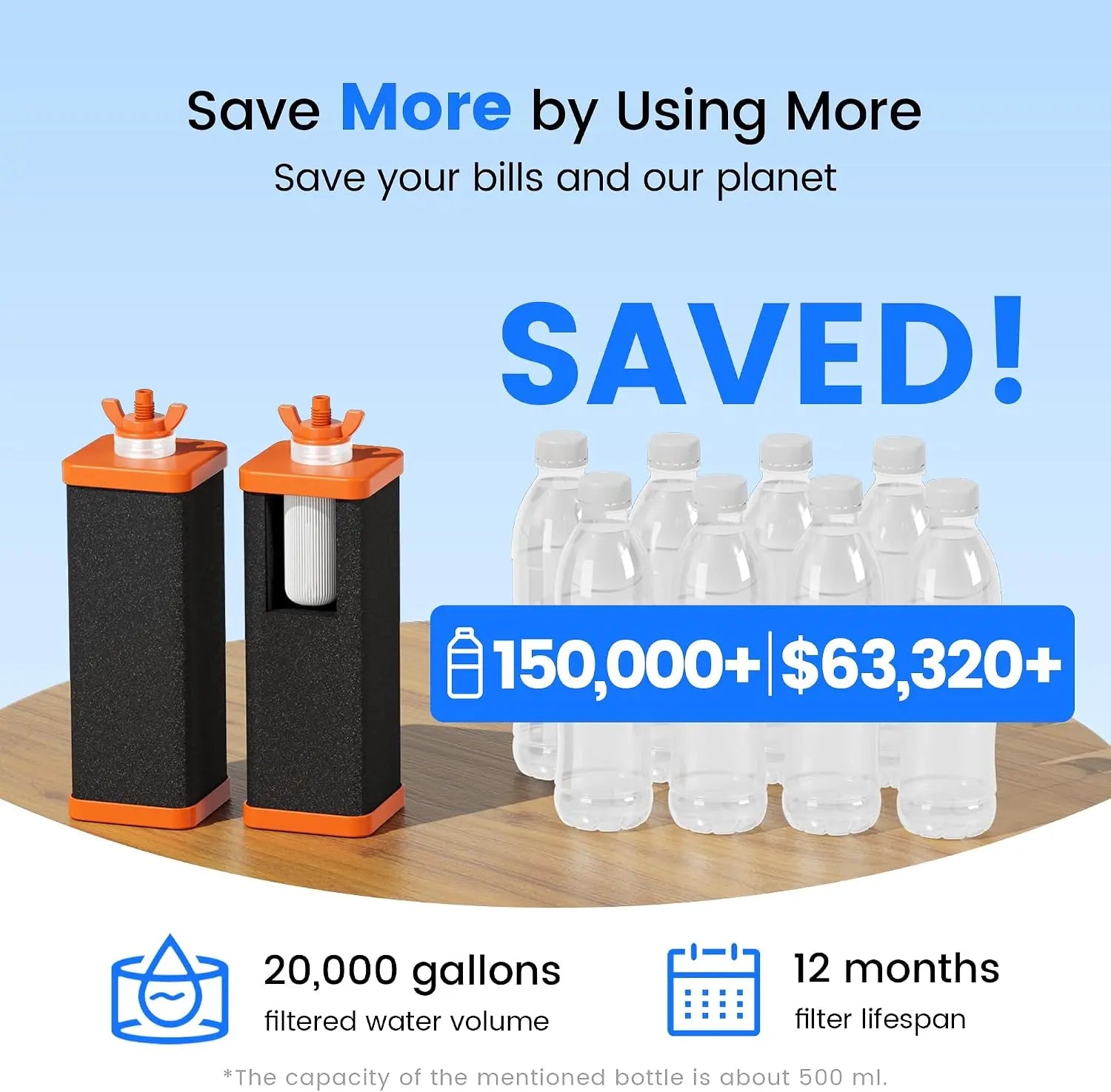

Filter Life Up to 20,000 Gallons per Box
Flow Rate Up to 2.5 Gallons per Hour with 2 Filters Installed
Series SS Series
Filter Size Approx. 2.76 in × 8.66 in / Φ7 × 22 cm
Also Compatible With ProOne Big+ / Big II and Berkey Gravity Systems
Filtration Options & Model Numbers

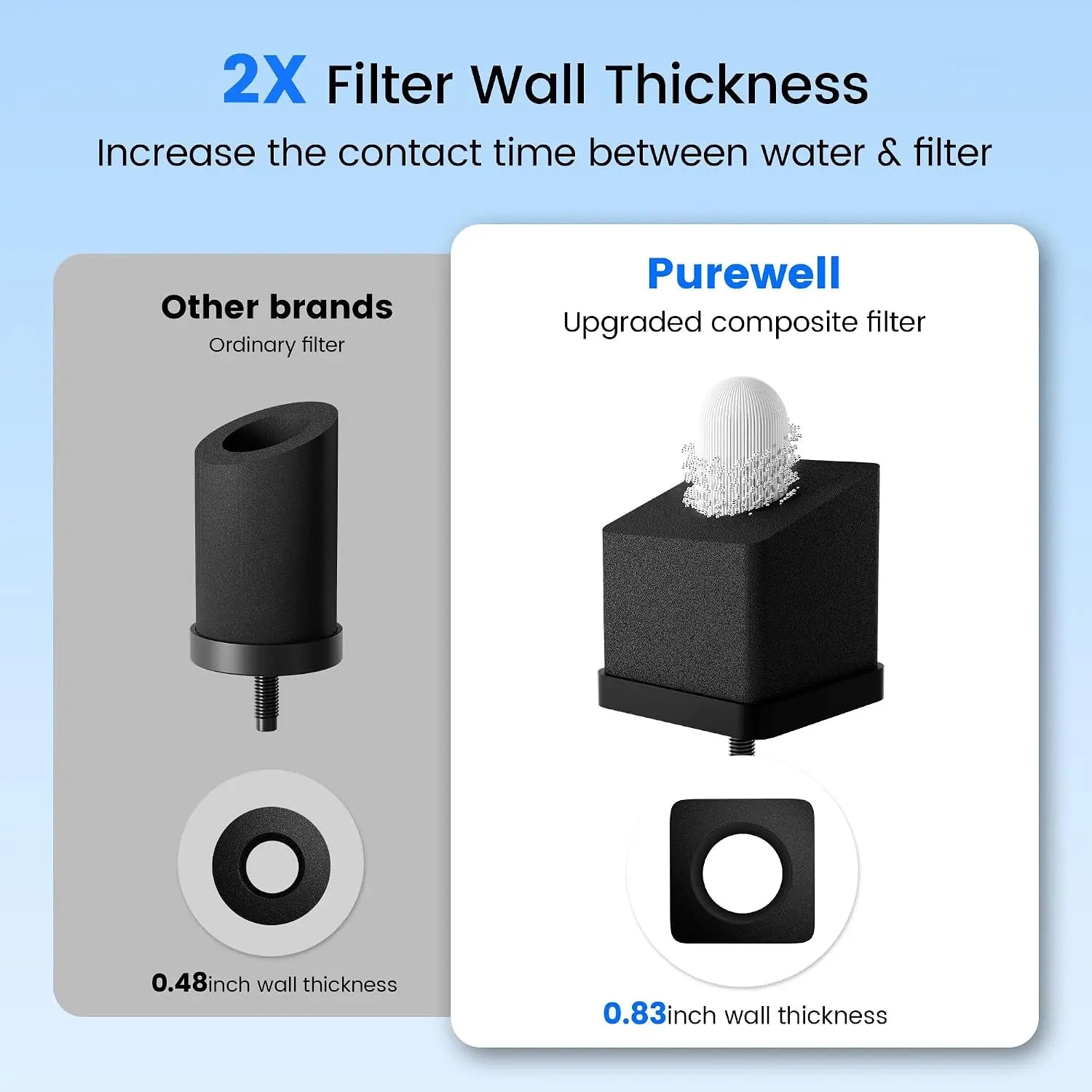

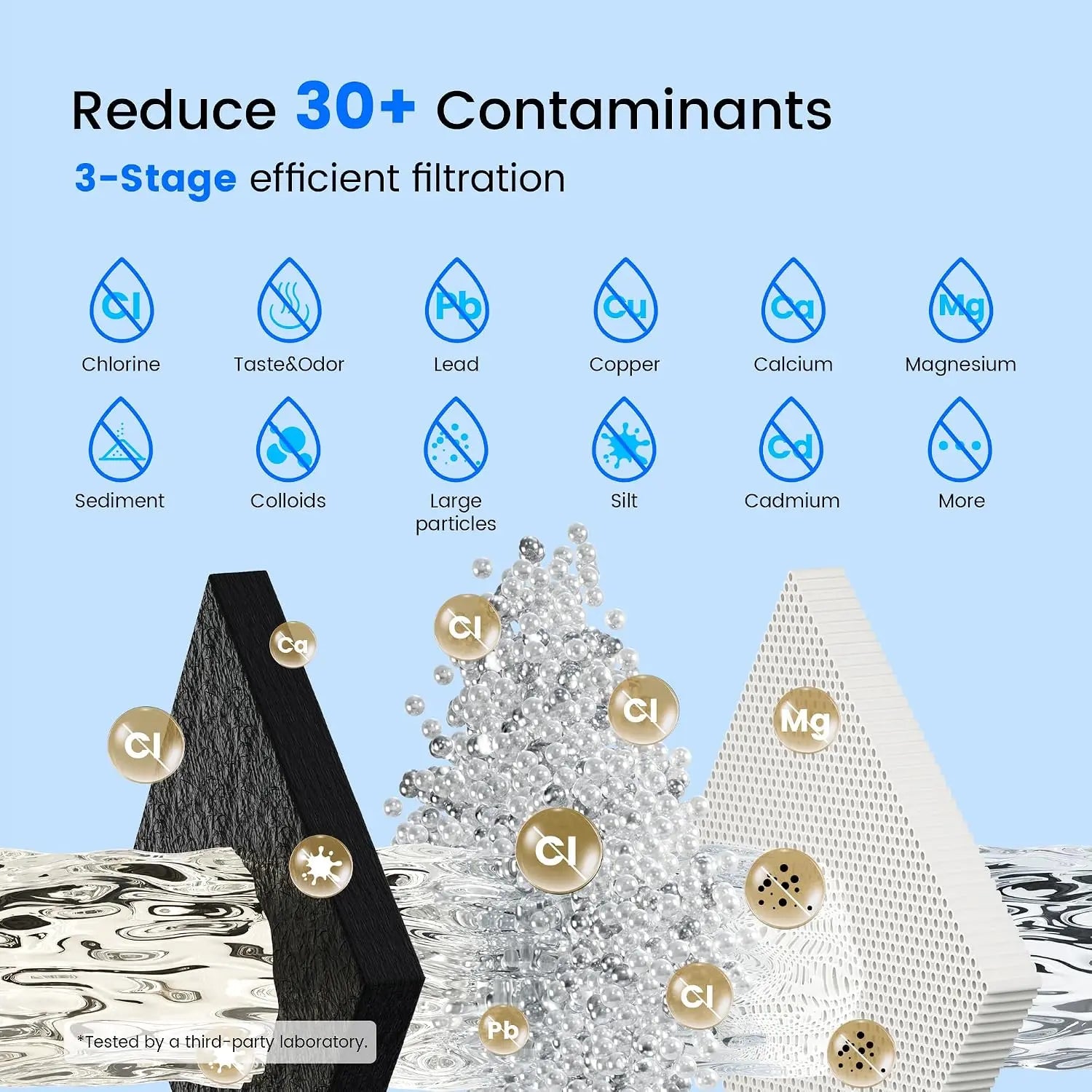

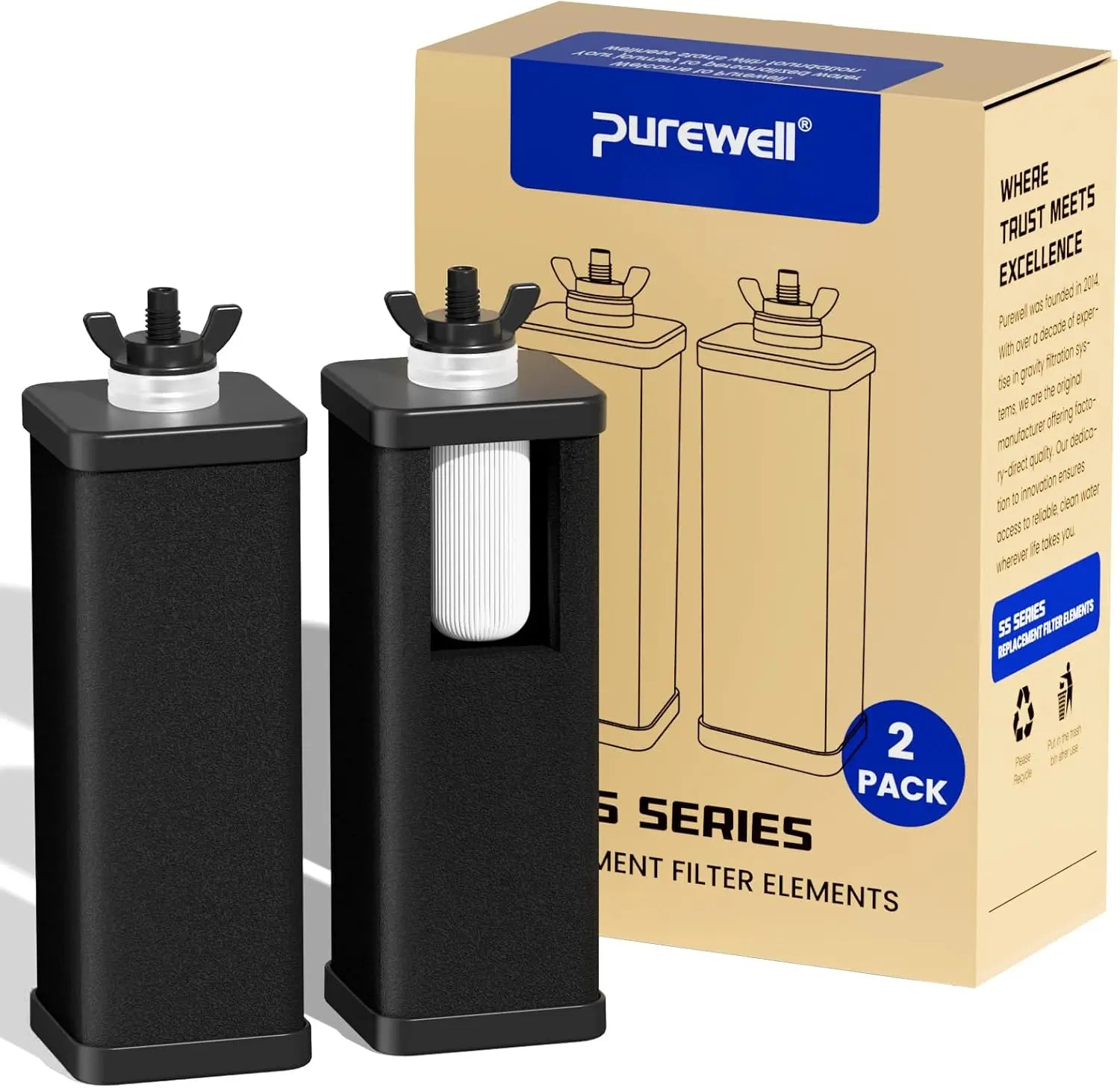

3-Stage Chlorine Reduction

Model No. SS-01
Filter Material
  • Activated Carbon
  • Silver Ion
  • Hollow Fiber UF Membrane
Key Functions
0.01 μm Pore Size Removes Bacteria Reduces Chlorine
Performance Details
Filter Life Up to 20,000 Gallons per Box
Flow Rate Up to 2.5 Gallons per Hour with 2 Filters Installed
Box Weight Approx. 1.87 lb Net / 2.20 lb Gross

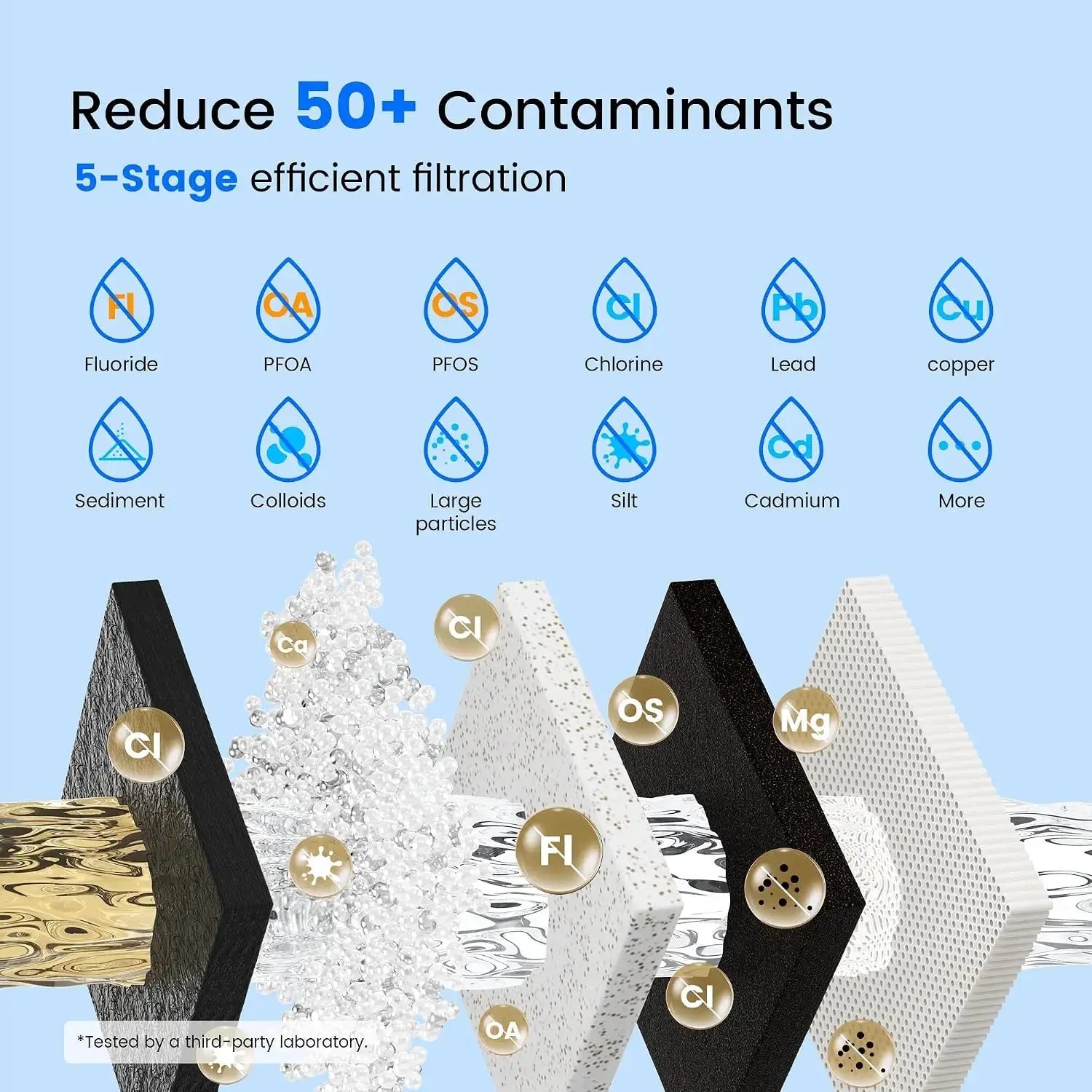

5-Stage Fluoride & PFAS Reduction

Model No. SS-02
Filter Material
  • Activated Carbon
  • Silver Ion
  • Fluoride Reduction Material
  • Hollow Fiber UF Membrane
  • Hybrid Media
Key Functions
0.01 μm Pore Size Removes Bacteria Reduces Chlorine Reduces Fluoride Reduces PFAS
Performance Details
Filter Life Up to 20,000 Gallons per Box
Flow Rate Up to 2.5 Gallons per Hour with 2 Filters Installed
Box Weight Approx. 1.87 lb Net / 2.20 lb Gross

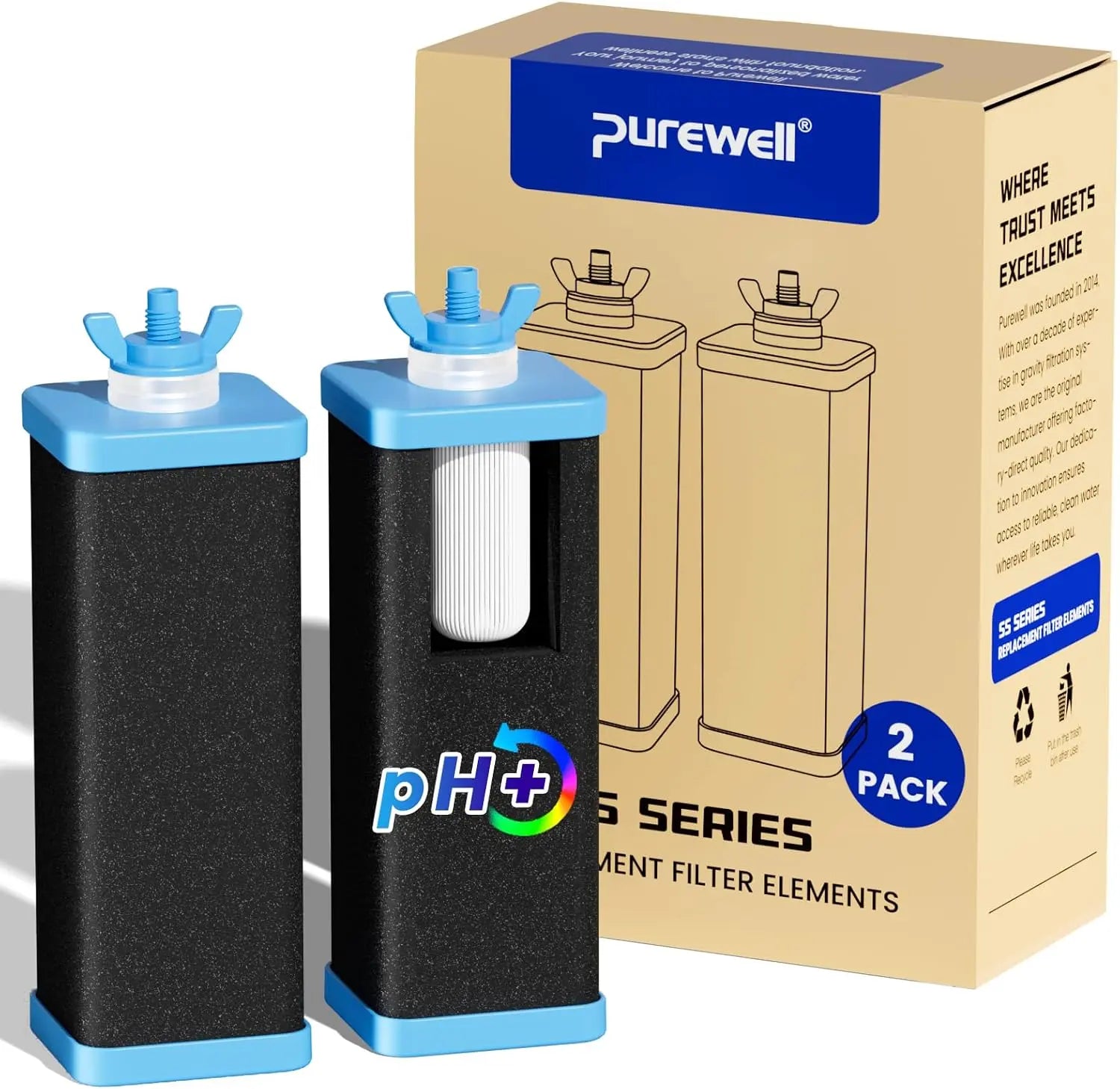

5-Stage Alkaline & PFAS Reduction

Model No. SS-03
Filter Material
  • Activated Carbon
  • Silver Ion
  • Alkaline Material
  • Hollow Fiber UF Membrane
  • Hybrid Media
Key Functions
0.01 μm Pore Size Removes Bacteria Reduces Chlorine Raises pH Level Reduces PFAS
Performance Details
Filter Life Up to 20,000 Gallons per Box
Flow Rate Up to 2.5 Gallons per Hour with 2 Filters Installed
Box Weight Approx. 1.87 lb Net / 2.20 lb Gross

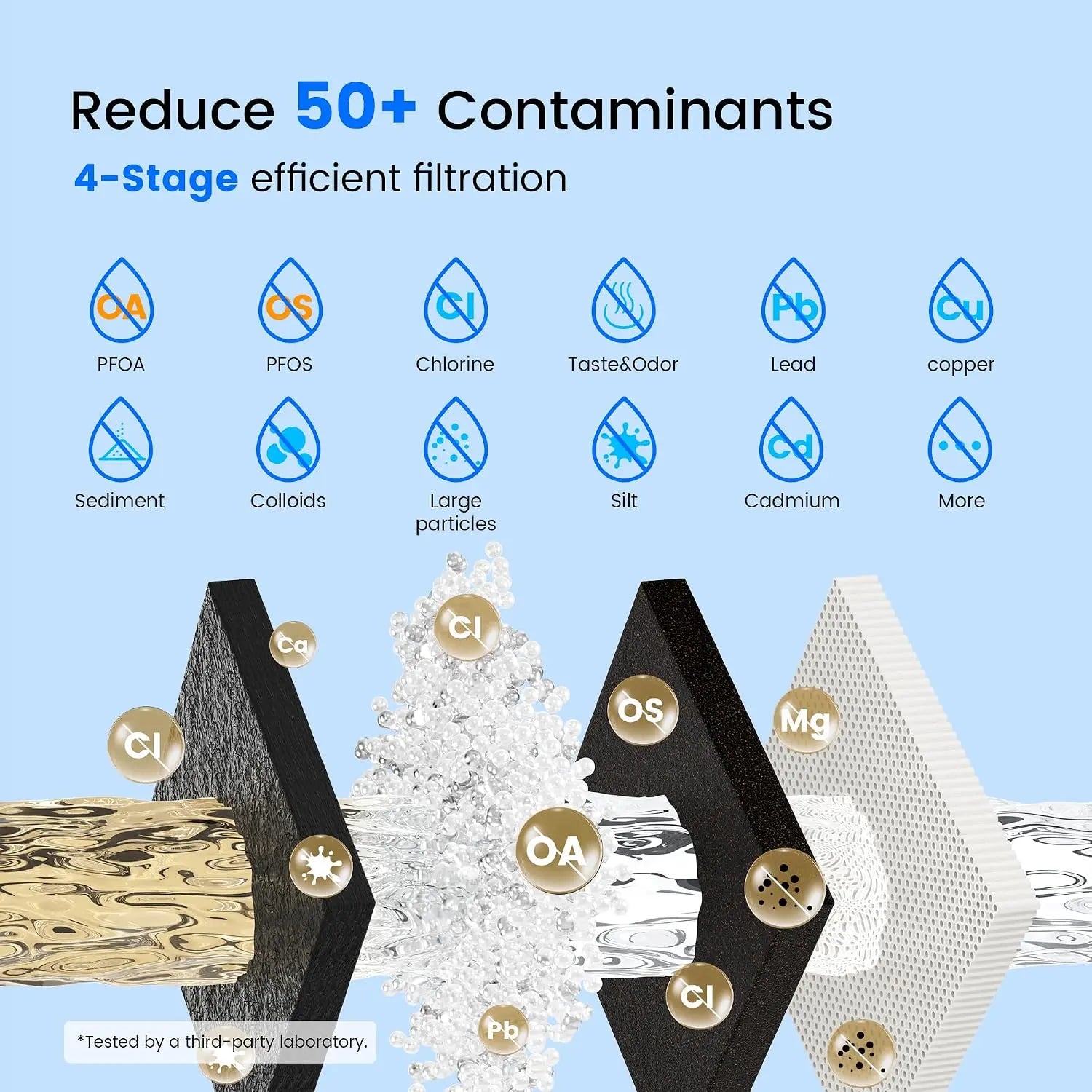

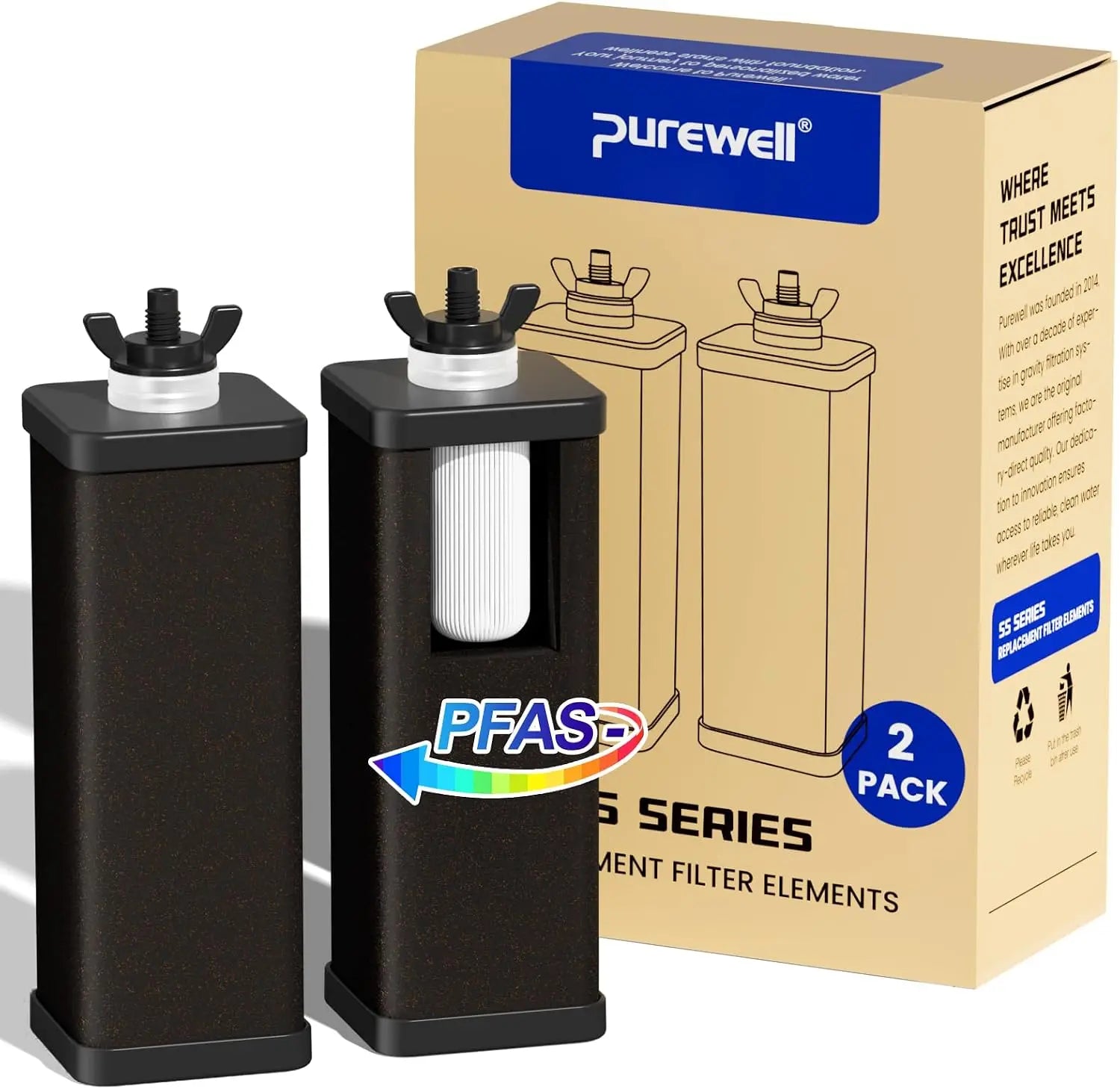

4-Stage Chlorine & PFAS Reduction

Model No. SS-04
Filter Material
  • Activated Carbon
  • Silver Ion
  • Hollow Fiber UF Membrane
  • Hybrid Media
Key Functions
0.01 μm Pore Size Removes Bacteria Reduces Chlorine Reduces PFAS
Performance Details
Filter Life Up to 20,000 Gallons per Box
Flow Rate Up to 2.5 Gallons per Hour with 2 Filters Installed
Box Weight Approx. 2.09 lb Net / 2.43 lb Gross
Use Notes
01

Choose 3-Stage Chlorine Reduction for everyday filtration with bacteria removal and chlorine reduction.

02

Choose 5-Stage Fluoride & PFAS Reduction if you want added fluoride and PFAS reduction in one filter option.

03

Choose 5-Stage Alkaline & PFAS Reduction if you want PFAS reduction with an added alkaline material layer designed to raise pH level.

04

Choose 4-Stage Chlorine & PFAS Reduction if you want core filtration with added PFAS reduction.

05

Also works as a replacement option for ProOne Big+ / Big II and Berkey BB9-2 style systems, including Travel, Big, Royal, Imperial, Light, and Crown Berkey Series.

06

Each box includes 2 filters. Install both filters together for the listed flow rate and rated filter life.

Note: Filter life and flow rate may vary depending on source water quality, usage frequency, and maintenance conditions. Always check your system size and filter compatibility before purchase. Third-party brand and model names are used for compatibility reference only.
User Guide
Carbon Filter Guide

How to Use the Carbon Filter

Follow these simple steps to prepare, install, and use your carbon filter correctly.

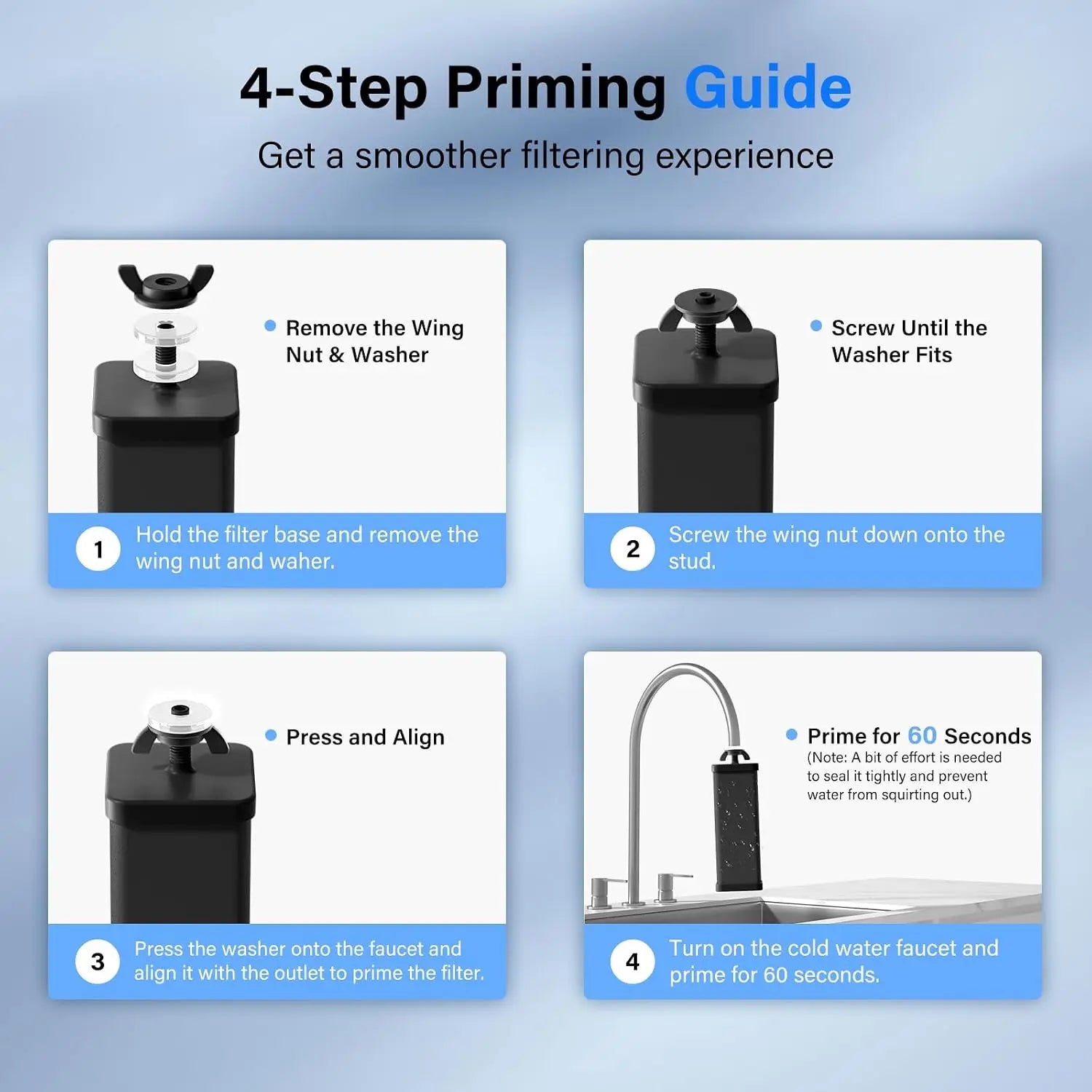

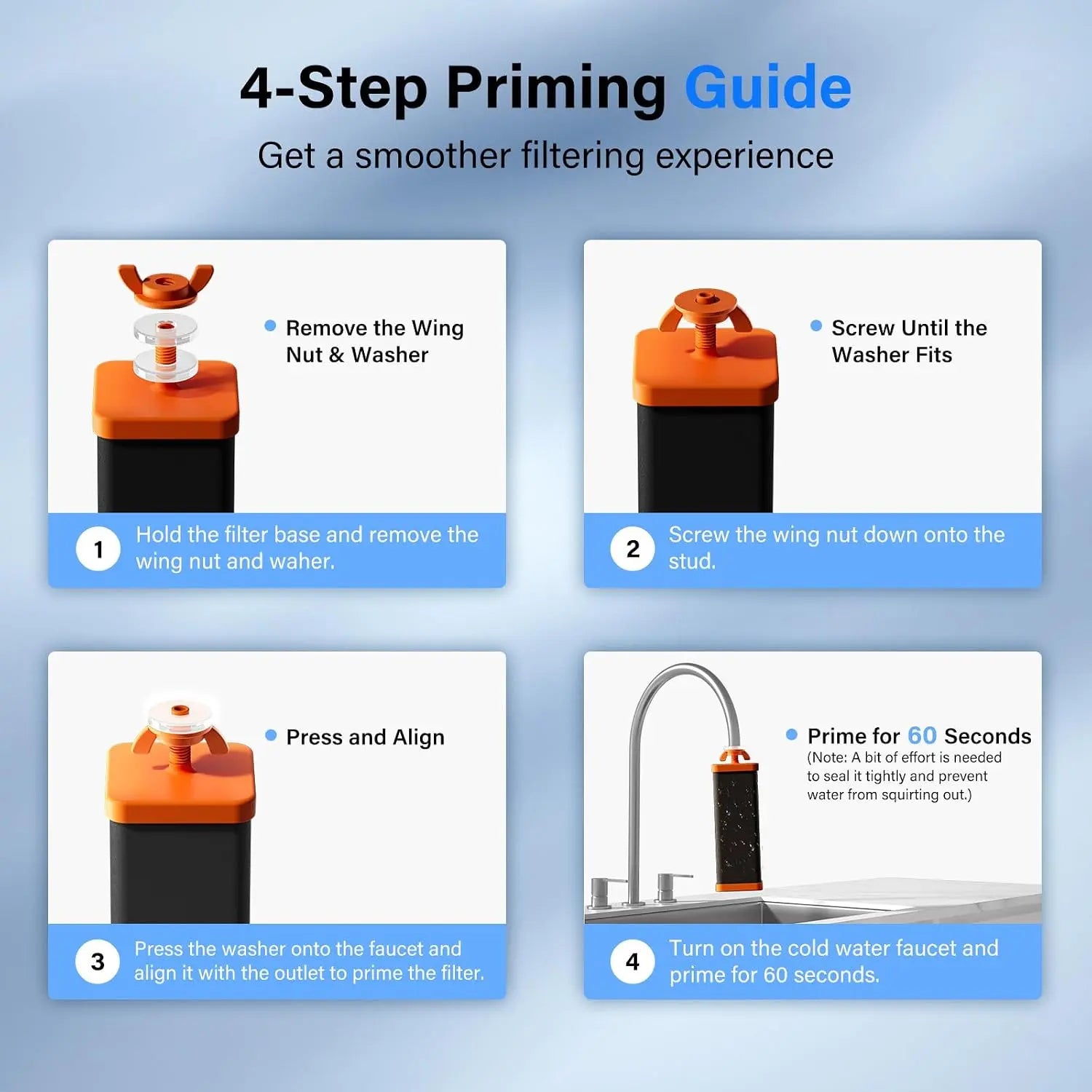

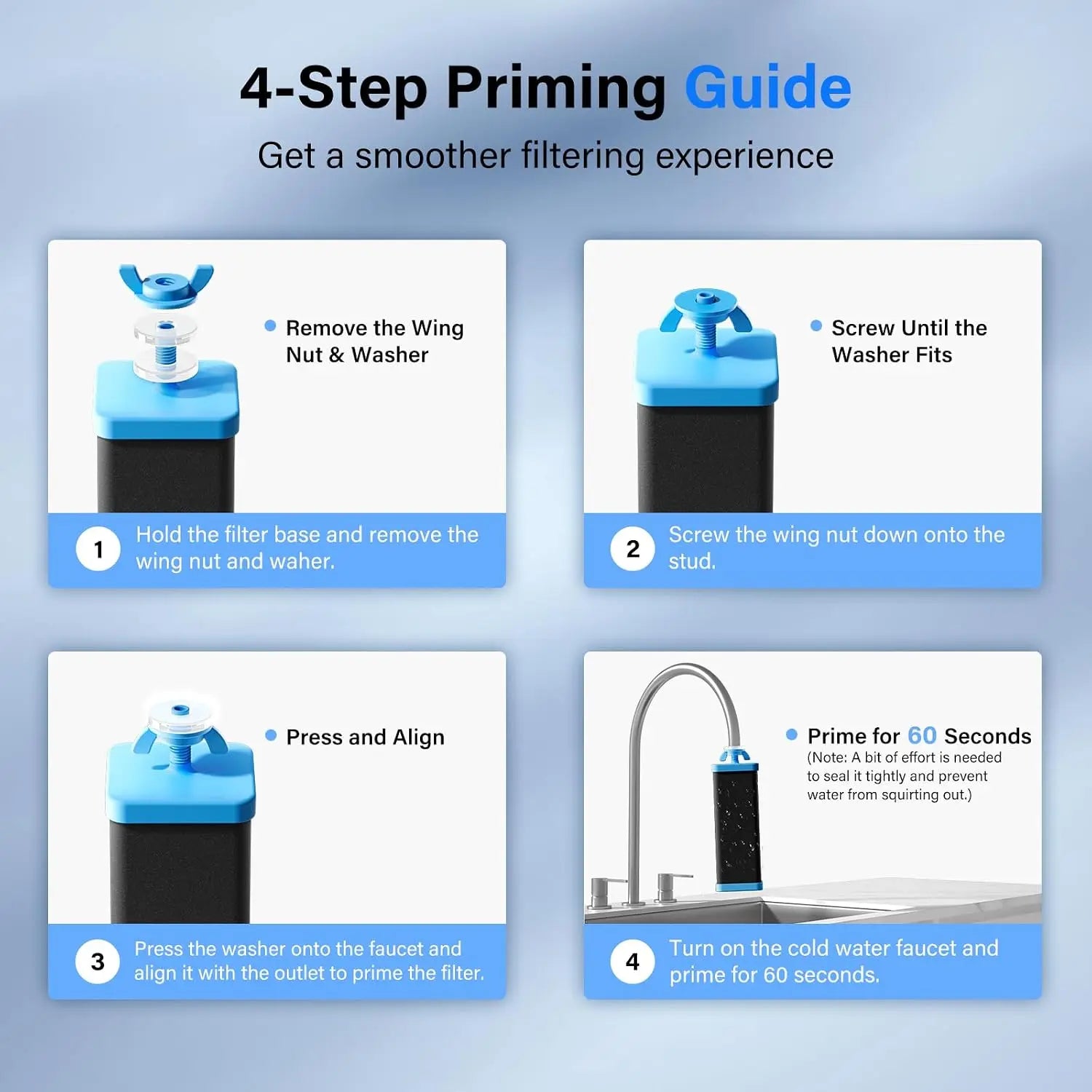

Step 01

Prime the Carbon Filter

Before installation, place the washer and wing nut correctly, then rinse the carbon filter under running water.

1
Remove the wing nut and filter washer, then place them back on the threaded stem in the correct position.
2
Make sure the washer and wing nut are positioned securely before connecting the filter to the faucet.
3
Rinse the carbon filter for at least 60 seconds, or until the water runs clear.
Tip: Priming helps flush loose carbon particles before the filter is installed.
Visual Guide Assemble → Tighten → Rinse
Place the washer and wing nut on the filter stem.
Tighten the wing nut until the parts fit correctly.
Rinse for at least 60 seconds until water runs clear.
Step 02

Install the Carbon Filters

Insert the threaded rod of each carbon filter through the upper chamber, then secure it from below.

1
Place the threaded rod of the carbon filter through a filter washer.
2
Insert the filter into the hole in the upper chamber.
3
From below, add the remaining washer and wing nut, then tighten securely.
Tip: Make sure each filter is stable and sealed before filling the upper chamber.
Visual Guide Upper Chamber → Installed System
Insert filters into the upper chamber and secure from below.
The system is ready after both filters are installed.
Step 03

Important Notice

Follow these guidelines to help maintain normal water flow and avoid improper use.

1
Do not use the filter to filter hot water.
2
This filter cannot remove color from beverages such as cola.
3
This filter cannot reduce the TDS value of water.
4
At the beginning of filtration, keep enough water in the upper chamber to support gravity-fed water pressure.
5
If the filter will not be used for more than 3 days, remove all filter elements and allow parts to dry.
6
Do not use detergents to clean the filter elements, as this may cause clogging.
Please follow the installation guide and use the filter correctly for proper operation.
Care Tips Use Correctly
°
No Hot Water
Use only cold or room-temperature water.
×
No Colored Drinks
Do not use the filter for cola or other colored beverages.
T
Does Not Reduce TDS
This filter is not designed to reduce TDS values.
Keep Enough Water
Sufficient water helps maintain gravity-fed flow.
3
Dry if Unused
If unused for over 3 days, remove filters and let parts dry.
!
No Detergents
Clean without detergents to help prevent clogging.
How It Works

How Gravity Filtration Works

Water flows from the upper chamber through the filter elements by gravity, then collects in the lower chamber and is ready to dispense.

1. Add Water

Pour water into the upper chamber. No electricity or plumbing is required.

2. Gravity Pulls Water Down

Water naturally moves through the filter elements by gravity.

3. Filtered Water Collects Below

Filtered water collects in the lower chamber and is ready to pour from the spigot.

Filter Replacement

Filter Replacement Guide

Replacing filters on time helps your filtration system keep working properly. It also helps maintain water flow, drinking water taste, and everyday use confidence.

!
Track Usage Time & Filter Life

Filter life may vary by water quality, usage frequency, and total water volume filtered.

Rated Filter Life Reached

Replace the filters when they reach the rated lifespan listed for your filter model.

Water Flow Becomes Slower

If filtering takes much longer than usual, clean or replace the filters as needed.

Taste or Odor Returns

If unwanted taste or smell becomes noticeable again, it may be time to replace the filters.

Source Water Matters

Rain, river, stream, or well water may shorten filter life compared with regular tap water.

What to Check Before Replacing Filters
Confirm Compatibility

Choose filters that match your filtration system, filter series, and setup.

Prepare New Filters

Prime, rinse, or flush new filters according to the product instructions.

Check Seals & Washers

Make sure washers, seals, and threaded parts are installed correctly.

Clean the System

Empty and clean the upper and lower chambers before installing new filters.

Replace Sets Together

If your system uses paired filters, replace matching filters together when needed.

Record the Date

Write down the replacement date and set a reminder based on your usage.

Filter & System Replacement Checklist

Use this checklist to choose the right replacement filter for your Purewell system and check whether it may also fit select compatible systems from other brands.

Filter Category Filter Type Fits Purewell Systems Other Compatible Systems
K Series Carbon Filters (Pro) Core Filter SS Series and K Series filtration systems. Select ProOne Big+ / Big II and Berkey BB9-2 style systems.
K Series Carbon Filters Core Filter SS Series and K Series filtration systems. Select ProOne Big+ / Big II and Berkey BB9-2 style systems.
K Series Carbon Filters (Classic) Core Filter SS Series and K Series filtration systems. Black Berkey Elements style systems and select Berkey gravity systems.
K Series Ceramic Filters Core Filter SS Series and K Series filtration systems. Most gravity-fed systems from major brands, including Berkey, ProOne, Alexapure, Waterdrop, Doulton, Boroux, Culligan, and more.
SS Series Square Carbon Filters Core Filter SS Series and K Series filtration systems. Select ProOne Big+ / Big II and Berkey BB9-2 style systems.
SF Series Multi-Functional Filter Core Filter SF Series filtration systems. Select Zero pitchers and dispensers.
BO Series Unique Compound Filter Core Filter BO Series filtration systems only. Not intended for K Series, SS Series, or other gravity filtration systems.
K Series Specialty Add-On Filters Supplemental Filter Use together with K Series or SS Series core filters. Select Travel, Big, Royal, Imperial, Light, and Crown Berkey models as an additional filter option.
Filter replacement frequency directly affects the service cycle of your filtration system. Timely replacement helps support water flow, filtration performance, drinking water taste, and long-term system reliability. Actual filter life may vary based on source water quality, usage frequency, and total water volume filtered.
Video

Carbon Filter Installation & Care Videos

Watch these quick video guides to prepare, install, and maintain your Purewell carbon filters correctly. Proper setup and care help support steady water flow and everyday filter performance.

Pre-Use Preparation

Clean Before Installation

This video shows how to clean or rinse Purewell carbon filters before installation. Preparing the filters before first use helps support a cleaner setup process.

Recommended before first installation Helps prepare new carbon filters for use Useful before installing or replacing filters
Installation Guide

Carbon Filter Installation

This video shows how to install Purewell carbon filters for compatible gravity water filter systems. Follow the guide before first use or when replacing old filters.

Suitable for Purewell carbon filter setup Helps confirm correct filter position Recommended before first use or filter replacement
Maintenance Guide

Carbon Filter Care & Cleaning

This video explains how to maintain Purewell carbon filters, especially when the filter becomes dirty or water flow starts to slow down during use.

Useful when filters become dirty Helps maintain smoother water flow Supports daily care and long-term use

You Also Like

NSF Certified for Your Health

Independently tested to meet NSF/ANSI 42 & 372 standards, the highest level of trust in water filtration.

Lead-Free Guarantee (NSF/ANSI 372)
Certified lead-free materials to keep your water worry-free.
